Materials · Collection specifications
Nitro

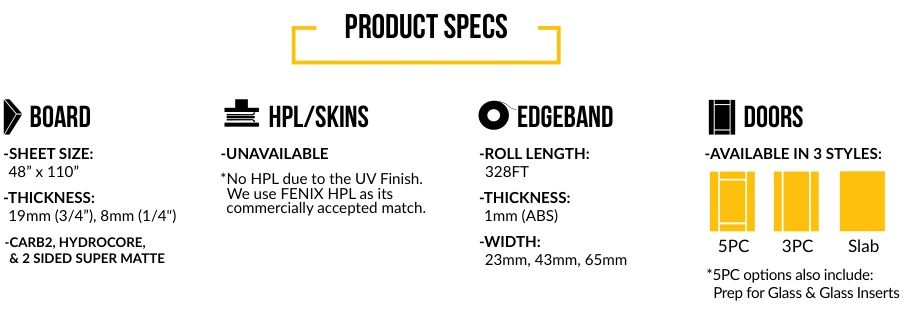

Board, skin, edgeband and door references from this program.
Board sheet: 48 × 110 in
Board thickness: 19 mm (3/4 in); 8 mm (1/4 in as printed). The 8 mm / 1/4 in pairing is inconsistent and needs confirmation.
Core / faces: HydroCore; two-sided super matte; catalog lists CARB2.
HPL / skins: Not available in Nitro due to the UV finish. FENIX HPL is described as a commercially accepted match, not an identical product.
Edgeband: ABS; 328 ft roll; 1 mm; widths 23 / 43 / 65 mm
Door-program reference: Slab, 3PC, 5PC; glass options listed.
Catalog describes anti-fingerprint and antimicrobial properties; test methods or efficacy levels are not supplied.
The collection page gives no water-resistance duration. Later door pages state nine hours for Nitro. These different scopes are recorded, not promoted as a cabinet warranty.
A catalog-program reference, not a verified current specification or warranty. Confirm the exact construction, finish, dimensions and compatibility before manufacture.
