Materials · Collection specifications

Meister

Board, skin, edgeband and door references from this program.

Board: 4 × 9 ft; 18 mm and 8 mm; two-sided

HPL / skins: 4 × 10 ft; 0.9 mm

Edgeband: 328 ft roll; 1 mm thick; 23 / 43 / 65 mm widths. Material type is not specified in this panel.

Door-program reference: Slab, 3PC and 5PC; glass options listed.

Surface-process description: Catalog describes a polyurethane film followed by three layers of polyacrylic coating.

Solar White is gloss only in the catalog. It is not a matte sample.

Antibacterial, hygienic and scratch-resistance descriptions are source claims without test documentation in this edition.

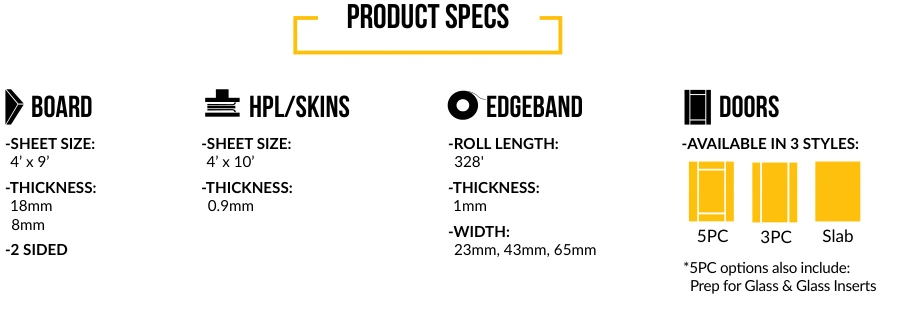

Meister — catalog technical drawing
Edition 3 · reference 19–20

A catalog-program reference, not a verified current specification or warranty. Confirm the exact construction, finish, dimensions and compatibility before manufacture.
