Materials · Collection specifications
FENIX · 10-foot program
Board, skin, edgeband and door references from this program.
General collection HPL: 51 × 120 in; 0.9 mm. Applies to the nine colors on the general collection page.
General board: Custom layup; specify core separately.

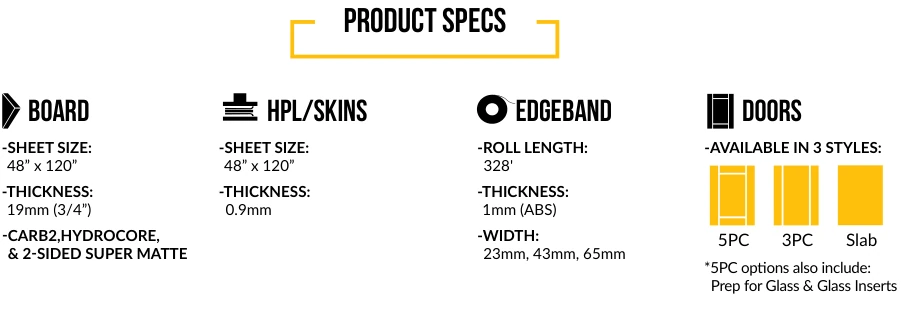

10-ft program: 48 × 120 in board at 19 mm (3/4 in), plus 48 × 120 in HPL at 0.9 mm; only the seven colors shown in that program.
10-ft board notes: Two-sided super matte, HydroCore and CARB2 listed.
10-ft edgeband: ABS; 328 ft; 1 mm; widths 23 / 43 / 65 mm.
General matching components: General page points to matching colors through the Nitro collection; this is not a statement of identical materials.
Sheet formats are program-specific. Do not assume every FENIX color is offered in every listed format.
Thermal scratch repair is a catalog claim, not a universal scratch-proof guarantee.
A catalog-program reference, not a verified current specification or warranty. Confirm the exact construction, finish, dimensions and compatibility before manufacture.
