Materials · Collection specifications
TruGloss · metallic program
Board, skin, edgeband and door references from this program.

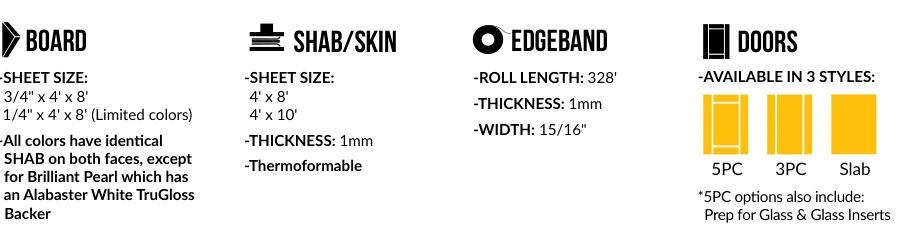

- Material
- TruGloss Metallics: acrylic PMMA-capped ABS; directional product supplied with a directional peel coat.
- Board formats
- 3/4 in × 4 × 8 ft; 1/4 in × 4 × 8 ft in limited colors. The metallic program panel does not list a 10-foot board format.
- Face / back
- Identical SHAB on both faces except Brilliant Pearl, which has an Alabaster White TruGloss backer.
- SHAB / skin
- 4 × 8 ft and 4 × 10 ft; 1 mm; thermoformable.
- Edgeband
- 328 ft roll; 1 mm; width 15/16 in. Material type is not specified in this particular panel.
- Door references
- Slab, 3PC and 5PC illustrated; glass / prep-for-glass options depend on the later StyleLite program restrictions.
A catalog-program reference, not a verified current specification or warranty. Confirm the exact construction, finish, dimensions and compatibility before manufacture.
