Materials · Collection specifications
Saviola

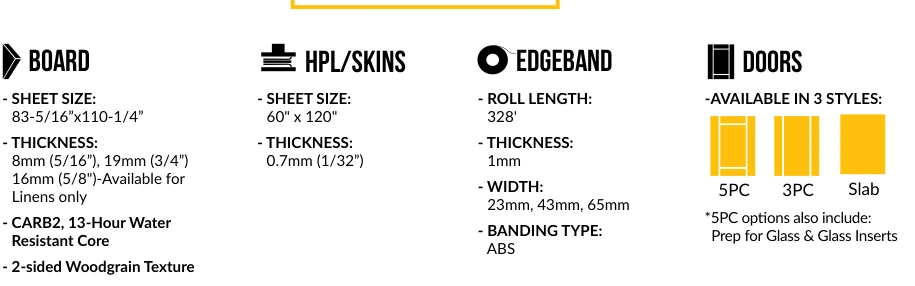

Board, skin, edgeband and door references from this program.
Board sheet: 83-5/16 × 110-1/4 in
Board thickness: 8 mm (5/16 in); 19 mm (3/4 in). 16 mm (5/8 in) listed for linens only.
Board surface: Two-sided woodgrain texture is listed; linen entries have their own textile-like texture.
HPL / skins: 60 × 120 in; 0.7 mm (1/32 in).
Edgeband: ABS; 328 ft roll; 1 mm thick; widths 23 / 43 / 65 mm.
Door-program reference: Slab, 3PC and 5PC; 5PC options include prep-for-glass and glass inserts.
The catalog describes a 13-hour water-resistant HydroCore. This is not a waterproof or finished-cabinet warranty. Test conditions are not supplied.
The 100% post-consumer recycled-material claim is recorded from the catalog; its exact component scope and supporting documentation need confirmation.
CARB2 is listed in the catalog; current product documentation has not been verified.
Door-program dimensions are supplier fabrication references, not confirmed Dream Design production limits.
A catalog-program reference, not a verified current specification or warranty. Confirm the exact construction, finish, dimensions and compatibility before manufacture.
