Materials · Collection specifications
SM’art
Board, skin, edgeband and door references from this program.

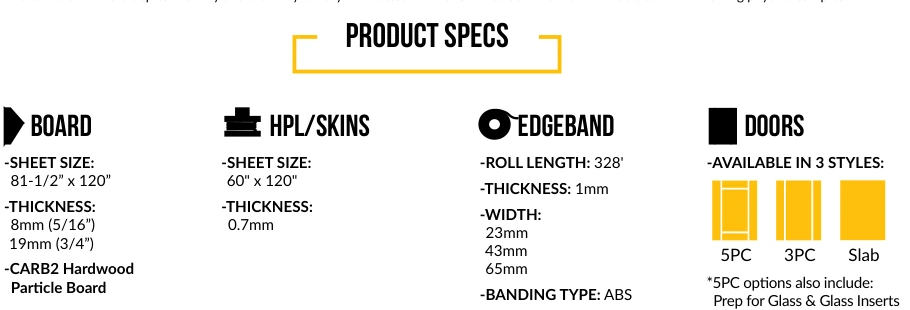

Board sheet: 81-1/2 × 120 in
Board thickness: 8 mm (5/16 in); 19 mm (3/4 in)
Board core: Hardwood particle board; catalog lists CARB2.
HPL / skins: 60 × 120 in; 0.7 mm
Edgeband: ABS; 328 ft roll; 1 mm; 23 / 43 / 65 mm widths
Door-program reference: Slab, 3PC, 5PC; prep-for-glass and glass-insert options listed.
A catalog-program reference, not a verified current specification or warranty. Confirm the exact construction, finish, dimensions and compatibility before manufacture.
